CGH型采金船Gold ship

采金船是一种建造在工程平底船上并漂浮于水面的采选联合机组，它一般包括挖掘、洗矿、尾矿排弃以及供水、供电、横移等系统。

Gold dredger, as an integral unit for mining and concentration that is constructed in engineering flat boat and floats on water, is usually composed of excavation, ore washing, tailing disposal, water supply, power supply and lateral movement systems etc.

CGH、CGJ系列采金船技术先进、结构合理、运转可靠、维修方便。经过多年生产实践证明，这种采金船生产砂金具有机械化程度高、生产能力大、投资少、见效快等特点，是砂金生产的一种先进的采选联合设备。

CGH and CGJ series gold dredger features advanced technology, rational structure, reliable operation and convenient maintenance. . Production practice over the years has proved that this series of gold dredgers present high degree of mechanization, production capacity, low cost and high effectiveness etc. and shall be deemed to be an advanced mining and concentration combination plant for placer gold production.

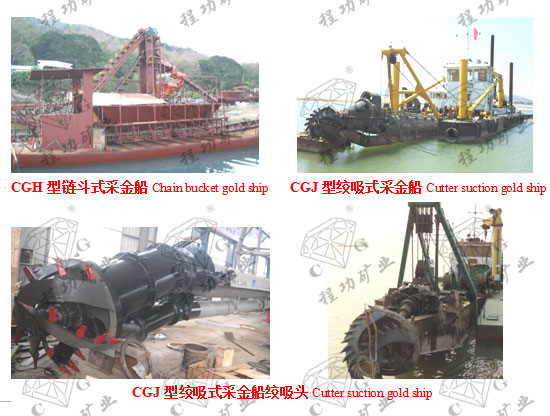

CGH型链斗式采金船 hain bucket gold ship

CGH系列采金船为链斗式采金船，船上的设备由11个部分和系统组成：

CGH series gold dredger, as a chain-bucket type gold dredger, is composed of eleven sections and systems:

1、挖掘系统：由挖斗链、主驱动、斗架等组成，主要用于完成表土和矿砂的采挖作业。

1. Excavation system: composed of excavator bucket chain, main drive and bucket ladder etc, mainly used for excavation of top soil and ore in sand form.

2、选矿设备：由圆筒筛、选金组合溜槽、粗选设备和精选设备组成，用于完成矿砂的洗矿、碎散、筛分、粗选和精选作业。

2. Dressing equipment: composed of cylindrical sieve, combination chute, rough separation equipment and concentration equipment, mainly used for ore washing, crumbling, screening, rough separation and concentration..

3、尾矿排弃系统：由胶带运输机、砂泵等组成，用于输送排弃砾石和尾矿。

3. Tailing disposal system: composed of conveyor belt and sand pump etc., mainly used for conveyance of gravels and tailings.

4、供水及中矿输送系统：由水泵、砂泵、水管、砂泵管管系等组成，用于供水和中矿矿浆输送。

4. Water supply and middling conveyance system: composed of water pump, sand pump, water pipe and sand pump pipes etc., mainly used for water supply and middling pulp conveyance.

5、绞车系统：由斗架提升绞车、首绳绞车、提锚绞车、横移绞车和登岸桥绞车等组成，用于进船、调船、系船、船的横移及斗架、桩柱、登岸桥的升降等。

5. Winch system: composed of bucket ladder lifting winch, head rope winch, anchor lifting winch, travelling winch and landing bridge winch etc., mainly used for boarding, dredger adjustment, tying, lateral movement and the elevation and descending of bucket ladder, pile and landing bridge.

6、起重设备：由船首起重机、主驱动间起重机和其他起重设备所组成，用于完成各种起重工作。

6. Hoisting equipment: composed of bow hoist, the hoist for main drive room and other hoisting equipment, mainly used for lifting works.

7、船体及船体设施：由平底船和各种船体设施所组成，用于安装采金船的各种设备和结构，使采金船能平稳地漂浮在水上作业。

7. Dredger body and related facilities: composed of flat boat and various dredger body facilities, mainly used for installation of various equipment and structures of gold dredger for smooth floating of gold dredger on water.

8、上部钢结构及房屋：由主桁架、前桅架、后桅架、操纵室、办公室、厂房、楼梯走台和登岸桥等组成，用于支承和布置各种设施和设备，保证采金船在作业时操作方便，安全可靠。

8. Steel superstructures and house: composed of primary truss, front mast, rear mast, operation room, office, workshop building, stair walkway and landing bridge etc., mainly used for supporting and arranging various installations and equipments to ensure the convenient operation of gold dredger and its safety and reliability.

9、桩柱装置：由桩柱、缓冲装置、滑轮等组成，用于采金船采挖时的船体定位和移步。

9. Pile device: composed of pile, cushioning device and pulley etc., used for dredger location and stepping during excavation.

10、压气系统：由空气压缩机、贮气罐、气压元件及管路等组成，用于给斗架提升机、提锚机等设备气闸刹车提供压力能源。

10. Air compressing system: composed of air compressor, air storage tank, pneumatic elements and pipeline etc., mainly used to provide pressure source for air brake of bucket ladder elevator and anchor lifter etc.

11、供电与电气控制系统：由供电、电力拖动、电气控制及照明等部分组成，用于驱动控制采金船各种电气设备及全船照明等。

11. Power supply and electric control system: composed of power supply, electric drive, electric control and lighting sections, mainly used to drive and control various electrical equipment and whole-dredger lighting etc.

CGJ型绞吸式采金船 Cutter Suction gold ship

绞吸式采金船是目前在疏滩工程中运用较广泛的一种船舶，它是利用吸水管前端围绕吸水管装设旋转绞刀装置，将河底泥沙进行切割和搅动，再经吸泥管将绞起的泥沙物料，借助强大的泵力，输送到泥沙物料堆积场，它的挖泥、运泥、卸泥等工作过程，可以一次连续完成，它是一种效率高、成本较低的采金船，是良好的水下挖掘机械。

As a widely used ship used in dredge engineering at present, cutter-suction dredger cuts and stirs the bottom sediment using the rotating cutter device mounted around suction pipe at the front side, and then conveys the silt materials to silt dumping yard via silt suction pipe making use the powerful pump force. The dredging, conveyance and unloading works can be completed in a continuous way at one time. This dredger is a high-efficiency and cost-efficient underwater excavation machinery.

通过对江、河、海清淤工程的实践，对绞吸式采金船的特性和存在不足有了一定程度的了解，以下将其应用中的体会阐述如下，以供同行们商讨。

From the sediment evacuation engineering practice for rivers and the sea, we have made a certain degree of understanding of properties and shortages of cutter-suction gold dredger. The experience from application is described as follows, for your reference.

1 绞吸式采金船具有良好的参数

1. Cutter-suction gold dredger has outstanding parameters.

（1）绞吸式采金船用途广泛，可以在江河湖海中作业，用以清淤，航道挖掘，吹填造地。在特殊情况下绞吸式采金船上安装大功率绞刀设备，不需爆破即可挖掘玄武岩和石灰石等岩石地层。

(1) Cutter-suction gold dredger is widely used for operation in rivers, lakes and the sea, channel excavation and land formation. . In particular cases, the cutter-suction gold dredger provided with large power cutter equipment can excavate at basalt and lime rock strata without blasting operation.

（2）绞吸式采金船工作效率高，产量大，泵距远。大型的绞吸式采金船每小时流量可达几千立方米；把泥沙或碎岩物料依靠强大动力通过泥泵和排泥管线，泵送出千米之外。

(2) Cutter-suction gold dredger features high operational efficiency, large output and long pump distance. . The flow per hour of large-scale cutter-suction gold dredger may reach thousands of cubic meters. Relying on the strong power, silt or crushed stones can be conveyed to a place kilometers away through dredge pump and dredging pipeline.

（3）绞吸式采金船操作简单，易于控制。采金船依靠船艉的台车使钢桩定位和步进，利用绞刀臂架两测钢缆与固定于挖槽两测的锚，靠铰车牵引，两厢摆动绞切泥沙物料，在一定的控制摆角下工作，将绞动的物料，经过输泥管泵到堆积场。采金船的步进是由两根桩交替运动，迈步向前。

(3) Cutter-suction gold dredger features simple operation and is easy to control. . With the trolley at the rear part of gold dredger, the steel pile is positioned and moved. The wing rooms swing and cut the silt material using the wire rope at both sides of cutter arm support and the anchor fixed to both sides of excavation channel through the winch. Through the operation at a certain control angle, the materials are conveyed to dumping site through dredging pipe. . The stepping of gold dredger is realized through alternating movement of the two piles.

（4）大型绞吸式采金船带有自航系统．迁移时可以自航到位。中小型采金船多为无自航系统，靠拖船拖行。中小型采金船可设计建造成组装式，通过陆路运输到现场，经组装后即可使用。

(4) Large-scale cutter-suction gold dredger is provided with self-propulsion system. . The dredger can move to its position using self propulsion during the movement. . Most medium and small-sized gold dredgers are not equipped with self-propulsion system and thus move under the force of tug boat. However, they can be designed and built in an assembled type. In this way, they can be assembled and put into operation after being transported to the site through land transportation.

（5）绞吸式采金船经济性好。物料的挖掘和输送一次性完成，不需要其它舶船配合，几次搬运。相对工程成本较低。

(5) Cutter-suction gold dredger is economic. . The excavation and conveyance of material is completed with a single pass and needs no cooperation from other dredgers. . Relatively, the engineering cost is low.

CGH型链斗式采金船技术参数 Parameter of Chain bucket gold ship

CGJ型绞吸式采金船技术参数 Parameter of cutter suction gold ship
