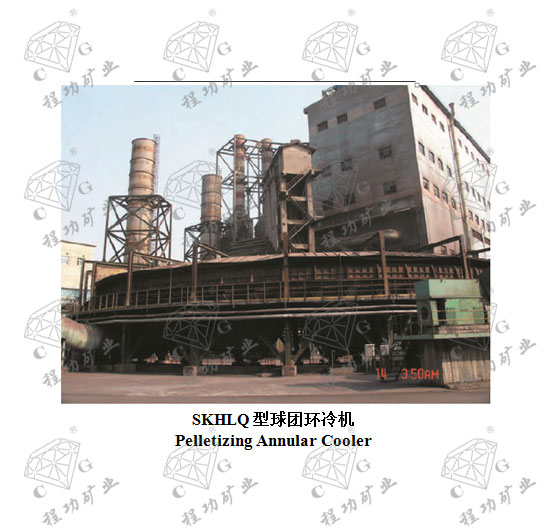

SKHLQ型球团环冷机 Pelletizing Annular Cooler

环冷机作为链蓖机—回转窑球团法生产球团工艺流程的中主要设备之一 主要功能有两个方面：1对回转窑排出的焙烧后高温氧化球团矿鼓风冷却，使其温度降低到便于后序工序处理；2作为整个系统热平衡的重要环节，回收高温球团中的热量，用于前面的工序，从而降低整个系统的燃料消耗。该设备能够在高温条件下正常工作。

Annular coolers, one of the main types of equipment of pelletizing technique of grate-kiln pelletizing method, mainly have two functions: 1. Conduct blast cooling of the oxidized pellet at high temperature after roasting that is discharged from rotary kilns, to reduce the temperature to such a degree as is easy for treatment during the subsequent working procedures; 2. As an important link during the whole system thermal equilibrium, recycle the heat in the pallet at high temperatures to be used for the preceding working procedures, so as to reduce fuel consumption of the whole system. Such equipment is able to work normally at high temperatures.

球团环冷机的组成：

Structure of Pelletizing Annular Cooler

环冷机是由下列几个主要部分所组成：（双）传动装置、回转体部分、支承辊、压轨装配、中心测量装置、机架装配、罩子装配、风箱及灰斗装配、烟囱、散料小车、双层卸灰阀、卸料槽、卸料区罩子、卸矿斗、卸料处安全装置、侧挡辊、润滑系统、给料斗等部分组成。

The main parts of annular coolers include: (Dual) transmission unit, rotary parts, back-up roll, rail press assembly parts, center measurement device, rack mounting device, cover mounting device, bellows and ash bucket mounting device, chimney, material distributing trolley, double-layer ash valve, discharge spout, cover for unloading section, discharging hopper, safety device in discharging area, side retaining roller, lubrication system, feed hopper, etc.

主要技术性能参数

HLQ  环冷机外形、主要尺寸表(mm)
