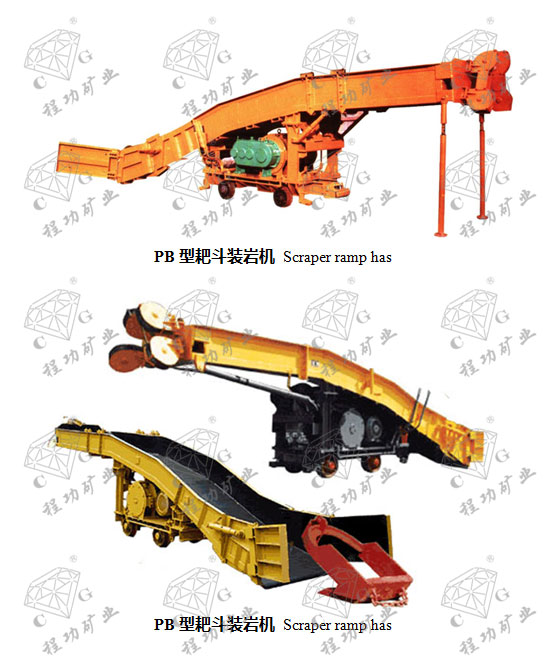

PB型耙斗装岩机Scraper ramp has
PB系列耙斗装岩机具有效率高、结构紧凑、应用范围广等特点。用于巷道掘进中配合矿车进行装岩。不仅可以在30°以下上山、下山巷道装岩，还可以进行掘进工序的平行作业，提高掘进速度，是实现巷道掘进机械化的主要机械设备之一。
Series PB scraper Ramp has the
feafureshighefficiency,construction andwidespread applications.they are
mainlyused for loading cars in the drift,Theycould be used not only for ramping
in thehorizontal drift,but also on the slopebelow 30° and for the patallel
combiningwords too,to improve the drifting speed.Itis a main mechanical
equipment torealize the mechanization of drifting.
| 型号规格 Model |
单位Uite |
P-15B |
P-30B |
P-60B |
P-90B |
| 耙斗容积 Olrme of bucket |
m3 |
0.15 |
0.3 |
0.6 |
0.9 |
| 技术生产率
Rate of Ortput |
m3 /h |
15-25 |
35-50 |
75-110 |
|
| 铁轨轨距 Gauge
of Raols |
mm |
600 |
600/762/900 |
600/762/900 |
|
| 主绳牵引力
Pulling Force of Working Rope |
KN |
7.2-10.4 |
13.5-19.5 |
23.3-32.7 |
|
| 主绳牵引速度
Pulling Force of Working Rope |
m/s |
0.9-1.4 |
0.85-1.22 |
0.97-1.35 |
|
| 容绳直径 Rope
Diamerer |
mm |
9.3 |
12.5-14 |
15.5 |
|
| 容绳量 Rope |
m |
56 |
85-75 |
80-70 |
|
| 功率 Power |
kw |
11 |
17 |
30 |
|
| 电动机工作电压
Motor Votage |
V |
380/660 |
380/660 |
380/660 |
|
| 外形尺寸
Overall Dim. |
mm |
5480×1550 ×1800 |
6600×2045 ×1950 |
9800×2750 ×2220 |
|
| 总重量Total weight |
kg |
2196 |
3692 |
5415 |
|
| |
