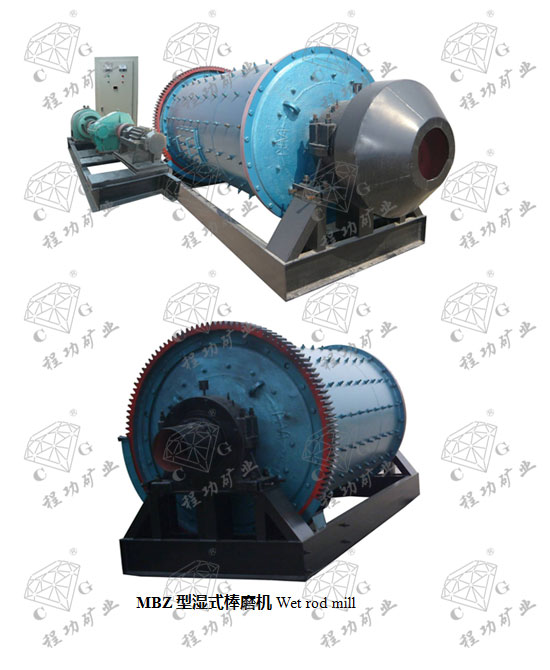

MBZ型湿式棒磨机 Wet rod mill

国家行业标准JB/T1406

一、用途

本产品可广泛用于有色金属、黑色金属、非金属选矿及化工、建材等行业作研磨物料之用。

二、工作原理和结构

1、棒磨机的工作原理是：当筒体旋转时将筒体内的物料和研磨体带到一定高度，在重力作用下，研磨体像抛射体样将物料击碎，同时研磨体发生滑动也给予物料研磨作用，从而达到磨粉目的。

2、本机系单室，中心卸料式棒磨机。

3、本机由给料部、进料部、筒体部、出料部等工作部分以及轴承部、传动部、电器部、基础部等组成。

4、筒体由钢板制作而成，筒体内装有耐磨衬板、筒体上开有出入孔，作为观察衬板和格子板磨损情况，以及取出研磨体，更换磨损的衬板和格子板之用。

I. Purpose

This type of products can be widely used in industries such as such as nonferrous metal, ferrous metal, and non-metallic minerals as well as chemicals and building materials to grind materials.

II. Structure and Working Principle

1. Work Principle of Rod Mill: When the cylinder is rotating, it lifts the materials and grinding body in the cylinder to a certain height. Under the action of gravity, the grinding body crushes the materials like projectile. At the same time, the grinding body slides and also plays grinding role for the materials so as to serve the purpose of grinding powder.

2. Such machine is central discharging type rod mill.

3. Such machine is composed of working parts such as feeding part, entering part, cylinder part and charging part, as well as bearings, transmission parts, electric parts, basic parts, etc.

4. The cylinder is made of steel plate. Wear-resisting liner is installed inside the cylinder and access holes are born on the outside of cylinder so as to observe the abrasion of lining plate and grid plate as well as take out the grinding body and replace the abraded lining plate and grid plate.

注：1、以上机器总重量不含电机  2、表中的产量为估算产量，其给矿粒度为25㎜-0.8㎜的中等硬度的矿石。
