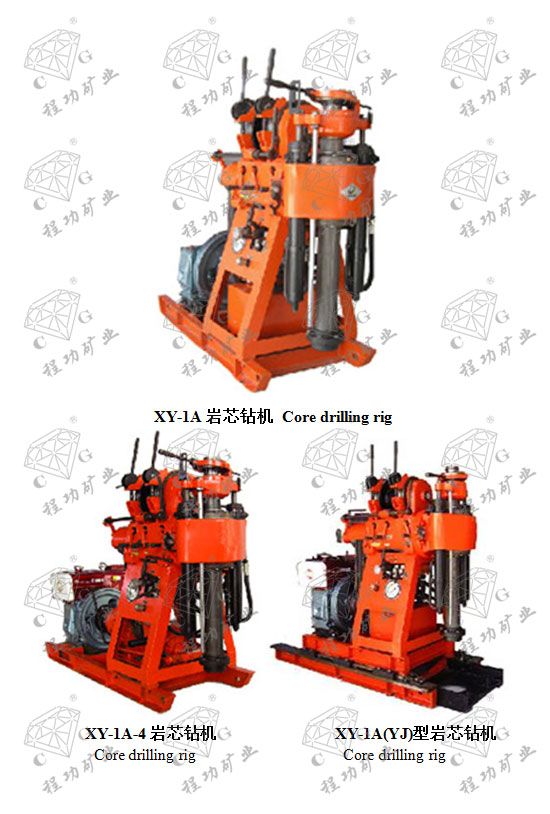

XY-1A岩芯钻机 Core
drilling rig
XY-1A型岩芯钻机是一种具有油压给进的高速轻便钻机。在XY-1A型钻机的基础上设计开发了XY-1A(YJ)、XY-1A-4型钻机。
XY-1A core drilling rigs are a kind of
high-speed portable drilling rigs of oil pressure feeding. XY-1A(YJ) and XY-1A-4 drilling rigs are designed and
developed on the basis of XY-1A
drilling rigs.
钻机适用范围:
Applicable Scope:
1、本钻机适用于固体矿床的普查勘探及工程地质勘察等钻孔以及各种混凝土结构检查孔。
1. This type of drilling rigs
applies to boreholes in reconnaissance of solid ore deposits and engineering
geological investigation, as well as access holes of various concrete structures.
2、根据地质结构的不同,可选用金刚石、合金及钢粒等钻头进行钻进。
2. According to differences in
geological structure, drills made of diamond, alloy, steel shot, etc can be
used for drilling.
3、当终孔分别为75mm和46mm时,额定钻孔深度分别为100m和180m。最深不得超过各钻进深度的110%,****开孔直径允许为150mm。
3. When the hole terminations
are respectively 75mm
and 46mm, the rated
drilling depths are respectively 100m
and 180m. The greatest
depth shall not exceed 110% of each drilling depth. The allowable opening
diameter is 150mm.
钻机特点:
Characteristic:
1、具有油压给进机构,提高钻进效率,减轻工人劳动强度。
1. The oil pressure
feeding mechanism helps to improve drilling efficiency and reduce workers’
labor intensity.
2、钻机配有上球卡式夹持机构并带有六方主动钻杆,可实行不停机倒杆,工作效率高,安全可靠。
2. The drilling rig
is equipped with upper ball card gripper mechanism and Kelly bar (Hexagonal).
Online reversing level can be realized, hence high working efficiency, easy
operation, safety and reliability.
3、配有孔底压力表指示压力,便于掌握孔内情况。
3. It is equipped
with hole bottom pressure meter to indicate pressure so that it is easier to
know the conditions in the hole.
4、手柄集中,操作方便。
4. The handle can be
easily operated.
5、钻机结构紧凑、体积小、重量轻、分解性强、便于搬迁、适合于平原或山区工作。
5. The
drilling jig has characteristic of compact structure, small size, light weight,
and strong decomposability. It can be easily moved and is suitable to be used
in plain or mountains.
钻 机
drilling |
钻进深度 Drilling depth |
m |
100、180 |
开孔直径 Initial hole dia. |
mm |
150 |
终孔直径 Final hole dia. |
mm |
75、46 |
钻杆直径 Drill rod dia. |
mm |
42、43 |
钻孔倾角 Angle range |
(°) |
90°-75° |
钻机外廓尺寸 (XY-1A)Dimensions |
mm |
1433×697×1274 |
钻机重量(不包括动力) (XY-1A)
weight(without
power unit)(XY-1A) |
kg |
420 |
钻机外廓尺寸 (XY-1A(YJ))Dimensions |
mm |
1620×970×1560 |
钻机重量(不包括动力) (XY-1A(YJ))
weight(without
power unit)(XY-1A(YJ)) |
kg |
620 |
移动行程(XY-1A(YJ)) Migration distance |
mm |
350 |
钻机外廓尺寸 (XY-1A-4)Dimensions |
mm |
1700×780×12744 |
钻机重量(不包括动力) (XY-1A-4)
weight(without
power unit)(XY-1A-4) |
kg |
490 |
回转器 Swivel head |
立轴转速(五档)Spindle speed (5-speed) |
r/min |
1010、790、470、295、140 |
立轴行 程 Spindle stroke |
mm |
450 |
立轴空载向上****移动速度 Upward displacement
speed of idling vertical spindle |
m/s |
0.05 |
立轴空载向下****移动速度Downward displacement speed
of idling vertical spindle |
m/s |
0.067 |
立轴****给进压力 Spindle pull-down max |
KN |
15 |
立轴****起重力 Spindle lifting capacity max |
KN |
25 |
卷扬机 Hoist |
****提升力(单绳)Max .lifting capacity(single
rope) |
KN |
15 |
卷筒转速 Lifting rotating speed |
r/min |
121、76、36 |
卷筒圆周线速度(二层)Hoisting drum linear velocity
(two levels) |
m/s |
0.166、0.331、0.733、1.465 |
卷筒直径 Drum dia. |
mm |
140 |
钢丝绳直径 Wire rope dia. |
mm |
9.3 |
钢丝绳容量 Wire rope capability |
m |
35 |
抱闸直径 Brake dia. |
mm |
252 |
闸带宽度 Brake belt width |
mm |
50 |
油泵 Oil Pump |
型号 Model |
|
YBC-12/80 |
额定压力 Rated pressure |
Mpa |
8 |
流量 Displacement |
ml/r |
8 |
额定转速 Rated speed |
r/min |
1500 |
动力机(, 柴油机或电动机) Power (diesel engine or
motor) |
柴油机型号 Model (diesel engine) |
S1100A2 |
额定功率Rated power |
kw |
10.3 |
额定转速 Rated speed |
r/min |
2200 |
电动机型号 Model (motor) |
Y160M-4 |
额定功率 Rated power |
kw |
11 |
额定转速Rated speed |
r/min |
1460 |
|
