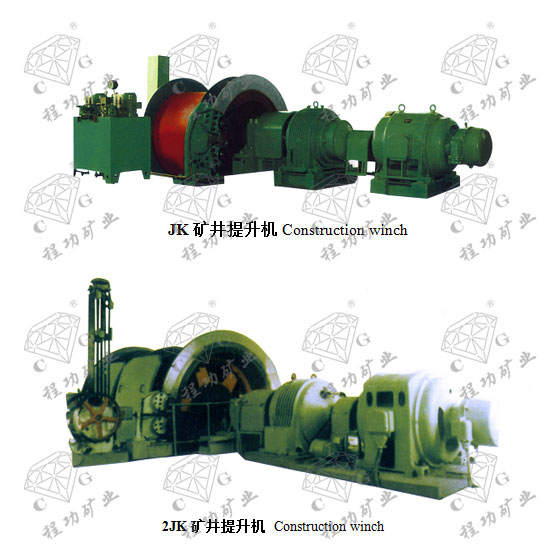

JK型矿井提升机 Construction winch
JK系列矿井提升机用于煤矿、金属矿及非金属矿在斜井和竖作提升或下降人员及物料之用。
Series JK Mine Hjist are mainly
used ir coal metal and non-metal mines for the purpose of Lifting and lowening
works in the inclined shafts or small shafts.
| 型号规格 Model |
卷筒 Drum |
钢丝绳 Rope |
功率 Power |
重量 weight |
| 直径 Diameter |
宽度 Width |
拉力 Pull |
直径 Diameter |
容绳量 Diameter |
速度 Veiocity |
| m |
m |
kn |
m |
m |
m/sec |
kw |
kg |
| JK-2/20A |
2 |
1.5 |
60 |
24.5 |
950 |
5.0/3.7 |
348/256 |
20415 |
| JK-2/30A |
2 |
1.5 |
60 |
24.5 |
950 |
3.3/2.5 |
207/174 |
20415 |
| JK-2×1.8/20A |
2 |
1.8 |
60 |
24.5 |
1125 |
5.0/3.7 |
348/256 |
20915 |
| JK-2×1.8/30A |
2 |
1.8 |
60 |
24.5 |
1125 |
3.3/2.5 |
207/174 |
20915 |
| 2JK-2/20A |
2 |
1 |
60 |
24.5 |
600 |
5.12/3.81 |
215/155 |
24110 |
| 2JK-2/30A |
2 |
1 |
60 |
24.5 |
600 |
3.41/2.54 |
155/110 |
24110 |
| 2JK-2/11.5A |
2 |
1 |
60 |
24.5 |
600 |
6.64/5.32 |
300/240 |
24110 |
| 2JK-2×1.25/20A |
2 |
1.25 |
60 |
24.5 |
810 |
5.12/3.81 |
215/155 |
25255 |
| 2JK-2×1.25/30A |
2 |
1.25 |
60 |
24.5 |
810 |
3.41/2.54 |
155/110 |
25255 |
| 2JK-2×1.25 /11.5A |
2 |
1.25 |
60 |
24.5 |
810 |
670 |
315 |
25255 |
| JK-2.5/20A |
2.5 |
2 |
90 |
31 |
1290 |
4.7/3.8 |
570/394 |
30118 |
| JK-2.5/30A |
2.5 |
2 |
90 |
31 |
1290 |
3.2/2.5 |
332/260 |
30118 |
| JK-2.5×2.2/20A |
2.5 |
2.2 |
90 |
31 |
1454 |
4.7/3.8 |
570/394 |
32060 |
| JK-2.5×2.2/30A |
2.5 |
2.2 |
90 |
31 |
1454 |
3.2/2.5 |
332/260 |
32060 |
| 2JK-2.5/11.5A |
2.5 |
1.2 |
90 |
31 |
790 |
6.6/8.2 |
400/570 |
35750 |
| 2JK-2.5/20A |
2.5 |
1.2 |
90 |
31 |
790 |
3.8/4.7 |
260/300 |
35750 |
| 2JK-2.5/30A |
2.5 |
1.2 |
90 |
31 |
790 |
2.5/3.2 |
160/200 |
35750 |
| 2JK-2.5×1.5/11.5A |
2.5 |
1.5 |
90 |
31 |
1000 |
6.6/8.2 |
400/570 |
35750 |
| 2JK-2.5×1.5/20A |
2.5 |
1.5 |
90 |
31 |
1000 |
3.8/4.7 |
260/300 |
35750 |
| 2JK-2.5×1.5/30A |
2.5 |
1.5 |
90 |
31 |
1000 |
2.5/3.2 |
160/200 |
35750 |
| 2JK-2.5×1.35 1.5A |
2.5 |
1.35 |
90 |
31 |
900 |
6.6/8.2 |
400/570 |
36700 |
| 2JK-2.5×1.35/20A |
2.5 |
1.35 |
90 |
31 |
900 |
3.8/4.7 |
260/300 |
36700 |
| 2JK-2.5×1.35/30A |
2.5 |
1.35 |
90 |
31 |
900 |
2.5/3.2 |
160/200 |
36700 |
| JK-3×2.2/20A |
3 |
2.2 |
135 |
36 |
1513 |
5.73/4.56/3.81 |
794/631/528 |
53318 |
| 2JK-3/11.5A |
3 |
1.5 |
130 |
37 |
955 |
6.62/7.92/9.97 |
565/675/850 |
59500 |
| 2JK-3/20A |
3 |
1.5 |
130 |
37 |
955 |
4.56/5.73 |
388/498 |
57480 |
| 2JK-3/30A |
2 |
1.5 |
130 |
37 |
955 |
3.04/3.82 |
259/326 |
57480 |
| 2JK-3.5/20A |
3.5 |
1.7 |
170 |
40 |
746 |
4.44/5.31/6.69 |
545/651/820 |
76800 |
| |
