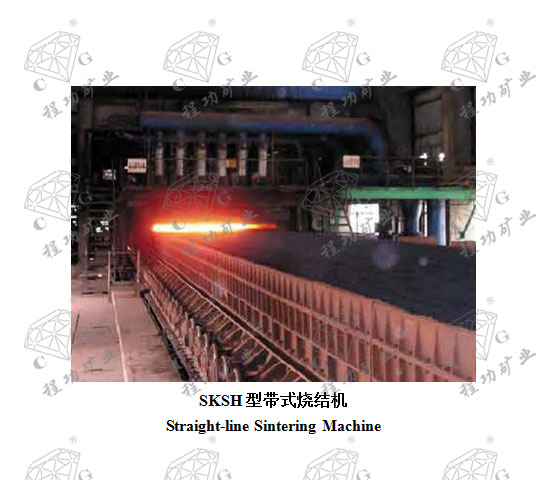

SKSH型带式烧结机 Straight-line
Sintering Machine
烧结机适用于大型黑色冶金烧结厂的烧结作业，它是抽风烧结过程中的主体设备，可将不同成份、不同粒度的精矿粉、富矿粉烧结成块，并部分消除矿石中所含的硫、磷、砷等有害杂质。
Sintering machines apply to the
sintering in large ferrous metallurgy sintering plants. They are the main
equipment during the sintering process which can singularize concentrate fines
and rich ore powder as well as remove detrimental impurities such as sulfur,
phosphor, and arsenic.
我厂设计制造烧结机已有几十年的历史，产品系列化，规格齐全，从KSH018到KSH450共有9种规格。我厂通过消化吸收移植用外烧结机的先进技术，设计制造了KSH180、KSH220、KSH265三种烧结机，特别是我厂同国外联合设计制造的KSH450烧结机，已被国家重点工程宝钢选用，其水平已达当代世界先进水平。
Our factory has been engaged in
design and manufacture of sintering machine for dozens of years. We are now
able to manufacture a series of products with 9 specifications from KSH018 to
KSH450. By introducing advanced technology of sintering machine, we have
designed and manufactured three types of sintering machines i.e. KSH180, KSH220
and KSH265. Especially the KSH450 sintering machines jointly designed and manufactured
by our factory with foreign countries have been selected and used by Baosteel,
the state keyu project. The technology it employs has reached advanced world
level.
烧结机按烧结面积划分为不同长度，不同宽度几种规格，用户根据其产量或场地情况进行选用。烧结面积越大，产量就越高。
Sintering machines can be
divided into several specifications of different lengths and widths according
to their sintering area. The users can select them according to their output
and site conditions. The larger the sintering area is, the higher the output
is.
烧结机主要由下列部分组成：铺底料装置、原料给料装置、原料溜槽、多柔传动装置、头部链轮、吸风装置、台车、头部台架、中部台架、尾部台架、移动架、一号灰箱、二号灰箱、头部端部密封、尾部端部密封、头部密封罩、尾部密封罩、润滑系统、隔热装置、篦条压辊、篦条清扫器、粘结矿检测装置、台车吊具、各检测平台等。
The main parts of sintering
machine are: Grate-layer material device, raw material feeding device, raw
material chute, multi-flexible transmission device, chain wheel at the head
part, suction unit, trolley, rack at the head part, rack in the middle, rack at
the end, movable frame, No. 1 ash bin, No. 2 ash bin, seals at the head part,
seal at the end, seal cover at the head part, seal cover at the end,
lubricating system, heat insulation device, grate bar compression roller, grate
bar cleanser, bonding ore detector, trolley hanger, each testing platform, etc
主要技术性能参数
Main
Technical Performance and Specification
1.
型号规格
KSH018 带式烧结机
1. KSH018
straight-line sintering machine
有效烧结面积m2： 18
Effective sintering
area (m2)： 18
台车规格（宽×长）m：1.5×1
Trolley specification
(W×L) (m)：1.5×1
台车数量块:40
Number of trolley: 40
有效烧结面长度m:12
Effective sintering
length (m): 12
台车移动速度m/min:0.7-2.1
Moving speed of
trolley (m/min): 0.7-2.1
料层****厚度mm:250
Maximum thickness of
material bed (mm): 250
设备最高产量t/h:36
Highest output of
equipment (t/h): 36
链轮转数r/min:0.074-0.022
Rotating speed of
chain wheel (r/min): 0.074-0.022
主电机型号:ZO2-81
Model of main motor:
ZO2-81
主电机功率:13
Power of main motor:
13
主电机转数r/min:1000
Rotating speed of
main motor (r/min): 1000
主减速机速比:44497.54
Speed ratio of main
speed reducer: 44497.54
圆辊给料机用电机型号:ZO2-71
Motor model for
roller type feeder: ZO2-71
圆辊给料机用电机功率:3
Motor power for
roller type feeder: 3
圆辊给料机用电机转数r/min:1000
Motor rotating speed
for roller type feeder (r/min): 1000
风箱负压（mmH2O）:900
Negative pressure for
bellows （mmH2O）:900
润滑油站型号:DGZ-500
Model of lubrication
station: DGZ-500 |
2.型号规格 KSH075 带式烧结机
2. KSH075
straight-line sintering machine
有效烧结面积m2： 75
Effective sintering
area (m2)： 75
台车规格（宽×长）m：2.5×1
Trolley specification
(W×L) (m)：2.5×1
台车数量块:85
Number of trolley: 85
有效烧结面长度m:30
Effective sintering length
(m): 30
台车移动速度m/min:1.4-4.2
Moving speed of
trolley (m/min): 1.4-4.2
料层****厚度mm:300
Maximum thickness of
material bed (mm): 300
设备最高产量t/h:135
Highest output of
equipment (t/h): 135
链轮转数r/min:0.165-0.499
Rotating speed of
chain wheel (r/min): 0.165-0.499
主电机型号:JZT62-4
Model of main motor:
JZT62-4
主电机功率:17
Power of main motor:
17
主电机转数r/min:1200-240
Rotating speed of
main motor (r/min): 1200-240
主减速机速比:442
Speed ratio of main
speed reducer: 442
圆辊给料机用电机型号:JZT42-4
Motor model for
roller type feeder: :JZT42-4
圆辊给料机用电机功率:5.5
Motor power for
roller type feeder: 5.5
圆辊给料机用电机转数r/min:120-1200
Motor rotating speed
for roller type feeder (r/min): 120-1200
风箱负压（mmH2O）:1200
Negative pressure for
bellows （mmH2O）: 1200
润滑油站型号:DGZ-50
Model of lubrication
station: DGZ-50 |
3.型号规格 KSH130 带式烧结机
3. KSH130
straight-line sintering machine
有效烧结面积m2： 130
Effective sintering
area (m2)：130
台车规格（宽×长）m：2.5×1
Trolley specification
(W×L) (m)：2.5×1
台车数量块:129
Number of trolley:
129
有效烧结面长度m:52
Effective sintering
length (m): 52
台车移动速度m/min:2.4-7.2
Moving speed of
trolley (m/min): 2.4-7.2
料层****厚度mm:300或350
Maximum thickness of
material bed (mm): 300 or 350
设备最高产量t/h:234
Highest output of
equipment (t/h): 234
链轮转数r/min:0.275-0.825
Rotating speed of
chain wheel (r/min): 0.275-0.825
主电机型号:ZZJ2-51
Model of main motor:
ZZJ2-51
主电机功率:30
Power of main motor:
:30
主电机转数r/min:680
Rotating speed of
main motor (r/min): 680
主减速机速比:216.63
Speed ratio of main
speed reducer: 216.63
圆辊给料机用电机型号:ZO2-91
Motor model for
roller type feeder: ZO2-91
圆辊给料机用电机功率:7.5
Motor power for
roller type feeder: 7.5
圆辊给料机用电机转数r/min:1000
Motor rotating speed
for roller type feeder (r/min): 1000
风箱负压（mmH2O）:1200
Negative pressure for
bellows （mmH2O）: 1200
润滑油站型号:DGZ-500
Model of lubrication
station: DGZ-500 |
4.型号规格 KSH220 带式烧结机
4. KSH220
straight-line sintering machine
有效烧结面积m2：220.5
Effective sintering
area (m2)：220.5
台车规格（宽×长）m：3.5×1
Trolley specification
(W×L) (m)：3.5×1
台车数量块:112
Number of trolley:
112
有效烧结面长度m:63
Effective sintering
length (m): 63
台车移动速度m/min:2.06-6.18
Moving speed of
trolley (m/min): 2.06-6.18
料层****厚度mm:460
Maximum thickness of
material bed (mm): 460
设备最高产量t/h:通过量1000
Highest output of
equipment (t/h): passing amount 1000
链轮转数r/min:0.154-0.462
Rotating speed of
chain wheel (r/min): 0.154-0.462
主电机型号:ZZJ2-51
Model of main motor:
ZZJ2-51
主电机功率:30
Power of main motor:
30
主电机转数r/min:680
Rotating speed of
main motor (r/min): 680
主减速机速比:1474.7
Speed ratio of main
speed reducer: 1474.7
圆辊给料机用电机型号:ZO2-91
Motor model for
roller type feeder: ZO2-91
圆辊给料机用电机功率:10
Motor power for
roller type feeder: 10
圆辊给料机用电机转数r/min:500-1500
Motor rotating speed
for roller type feeder (r/min): 500-1500
风箱负压（mmH2O）:1300
Negative pressure for
bellows （mmH2O）: 1300
润滑油站型号:DXZ-630
Model of lubrication
station: DXZ-630 |
5.型号规格 KSH450 带式烧结机
5. KSH450
straight-line sintering machine
有效烧结面积m2：450
Effective sintering
area (m2)： 450
台车规格（宽×长）m：5×1.5
Trolley specification
(W×L) (m)：5×1.5
台车数量块:136
Number of trolley:
136
有效烧结面长度m:90
Effective sintering
length (m): 90
台车移动速度m/min:1.9-5.3
Moving speed of
trolley (m/min): 1.9-5.3
料层****厚度mm:600
Maximum thickness of
material bed (mm): 600
设备最高产量t/h:625
Highest output of
equipment (t/h): 625
链轮转数r/min:0.147-0.441
Rotating speed of
chain wheel (r/min): 0.147-0.441
主电机型号:SF-KH-250M
Model of main motor:
SF-KH-250M
主电机功率:45
Power of main motor:
45
主电机转数r/min:300-900
Rotating speed of
main motor (r/min): 300-900
主减速机速比:2040.8
Speed ratio of main
speed reducer: :2040.8
圆辊给料机用电机型号SF-KH-225S
Motor model for
roller type feeder: SF-KH-225S
圆辊给料机用电机功率:15
Motor power for
roller type feeder: 15
圆辊给料机用电机转数r/min:300-900
Motor rotating speed
for roller type feeder (r/min): 300-900
风箱负压（mmH2O）:1800
Negative pressure for
bellows （mmH2O）:
1800
润滑油站型号:
Model of lubrication
station: |
6.型号规格 KSH050 带式烧结机
6. KSH050 straight-line
sintering machine
有效烧结面积m2： 50
Effective sintering
area (m2)： 50
台车规格（宽×长）m：2×1
Trolley specification
(W×L) (m)：2×1
台车数量块:70
Number of trolley: 70
有效烧结面长度m:25
Effective sintering
length (m): 25
台车移动速度m/min:1.6-4.8
Moving speed of
trolley (m/min): 1.6-4.8
料层****厚度mm:300
Maximum thickness of
material bed (mm): 300
设备最高产量t/h:124
Highest output of
equipment (t/h): 124
链轮转数r/min:0.133-0.398
Rotating speed of
chain wheel (r/min): 0.133-0.398
主电机型号:ZO2-81
Model of main motor:
ZO2-81
主电机功率:13
Power of main motor:
13
主电机转数r/min:1000
Rotating speed of
main motor (r/min): 1000
主减速机速比:203
Speed ratio of main
speed reducer: 203
圆辊给料机用电机型号:ZO2-61
Motor model for
roller type feeder: ZO2-61
圆辊给料机用电机功率:3
Motor power for
roller type feeder: 3
圆辊给料机用电机转数r/min:1500
Motor rotating speed
for roller type feeder (r/min): 1500
风箱负压（mmH2O）:1000-1100
Negative pressure for
bellows （mmH2O）:1000-1100
润滑油站型号:DGZ-500
Model of lubrication
station: DGZ-500 |
7.型号规格 KSH090 带式烧结机
7. SH090
straight-line sintering machine
有效烧结面积m2： 90
Effective sintering
area (m2)： 90
台车规格（宽×长）m：2.5×1
Trolley specification
(W×L) (m)： 2.5×1
台车数量块:97
Number of trolley: 97
有效烧结面长度m:36
Effective sintering
length (m): 36
台车移动速度m/min:2-6
Moving speed of
trolley (m/min): 2-6
料层****厚度mm:300
Maximum thickness of
material bed (mm): 300
设备最高产量t/h:173
Highest output of
equipment (t/h):
173
链轮转数r/min:0.236-0.709
Rotating speed of
chain wheel (r/min): 0.236-0.709
主电机型号:JZT71-4
Model of main motor:
JZT71-4
主电机功率:22
Power of main motor:
22
主电机转数r/min:1250-250
Rotating speed of
main motor (r/min): 1250-250
主减速机速比:323.78
Speed ratio of main
speed reducer: 323.78
圆辊给料机用电机型号:JZT51-4
Motor model for
roller type feeder: :JZT51-4
圆辊给料机用电机功率:7.5
Motor power for
roller type feeder: 7.5
圆辊给料机用电机转数r/min:250-1250
Motor rotating speed
for roller type feeder (r/min): 250-1250
风箱负压（mmH2O）:1200
Negative pressure for
bellows （mmH2O）: 1200
润滑油站型号:DGZ-500
Model of lubrication
station: DGZ-500 |
8.型号规格 KSH180 带式烧结机
8. KSH180
straight-line sintering machine
有效烧结面积m2： 181.125
Effective sintering
area (m2)： 181.125
台车规格（宽×长）m：3.5×1
Trolley specification
(W×L) (m)： 3.5×1
台车数量块:97
Number of trolley: 97
有效烧结面长度m:51.75
Effective sintering
length (m): 51.75
台车移动速度m/min:1.5-4.5
Moving speed of
trolley (m/min): 1.5-4.5
料层****厚度mm:500
Maximum thickness of
material bed (mm): 500
设备最高产量t/h:通过量800
Highest output of
equipment (t/h): passing amount 800
链轮转数r/min:0.117-0.351
Rotating speed of
chain wheel (r/min): 0.117-0.351
主电机型号:ZZJ2-51
Model of main motor:
ZZJ2-51
主电机功率:30
Power of main motor:
30
主电机转数r/min:680
Rotating speed of
main motor (r/min): 680
主减速机速比:总速比1935.5
Speed ratio of main
speed reducer: total speed ratio 1935.5
圆辊给料机用电机型号:ZO2-91
Motor model for
roller type feeder: ZO2-91
圆辊给料机用电机功率:10
Motor power for
roller type feeder: 10
圆辊给料机用电机转数r/min:500-1500
Motor rotating speed
for roller type feeder (r/min): 500-1500
风箱负压（mmH2O）:1300
Negative pressure for
bellows （mmH2O）: 1300
润滑油站型号:DXZ-630
Model of lubrication
station: DXZ-630 |
9.型号规格 KSH265 带式烧结机
9. KSH265
straight-line sintering machine
有效烧结面积m2：265.125
Effective sintering
area (m2)：265.125
台车规格（宽×长）m：3.5×1
Trolley specification
(W×L) (m)： 3.5×1
台车数量块:129
Number of trolley:
129
有效烧结面长度m:75.75
Effective sintering
length (m): 75.75
台车移动速度m/min:2.06-6.18
Moving speed of
trolley (m/min): 2.06-6.18
料层****厚度mm:500
Maximum thickness of
material bed (mm): 500
设备最高产量t/h:通过量1000
Highest output of
equipment (t/h): passing amount 1000
链轮转数r/min:0.154-0.462
Rotating speed of
chain wheel (r/min): 0.154-0.462
主电机型号:ZZJ2-51
Model of main motor:
ZZJ2-51
主电机功率:30
Power of main motor:
30
主电机转数r/min:680
Rotating speed of
main motor (r/min): 680
主减速机速比:1474.7
Speed ratio of main
speed reducer: 1474.7
圆辊给料机用电机型号:ZO2-91
Motor model for
roller type feeder: ZO2-91
圆辊给料机用电机功率:10
Motor power for
roller type feeder: 10
圆辊给料机用电机转数r/min:500-1500
Motor rotating speed
for roller type feeder (r/min): 500-1500
风箱负压（mmH2O）:1300
Negative pressure for
bellows （mmH2O）: 1300
润滑油站型号:DXZ-630
Model of lubrication
station: DXZ-630 |
|
| |
