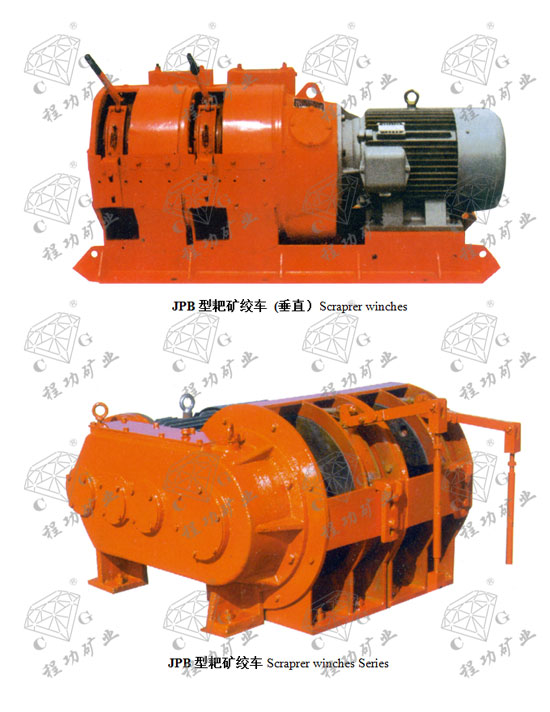

JPB型耙矿绞车 Scraprer winches
JPB系列耙矿绞车主要用于金属矿煤及其它矿场的地下或露天矿石运搬及充填作业。主要用于水平耙运，也可用于倾坡耙运，不能作为提升设备。司机可以在绞车旁边用手操纵，也可用距绞车数米到数十米处用按钮实行距离操作。平行布置的耙矿绞车与PB系列耙斗装岩机主机通用。
Series JPB Scraper Winches are mainly used in the underground or
open pit of metal or other mines for the purpose oftransfering or filling or on
a small slope,but not forl certical lifting or lowering. It can be operated
manually or by remotecontrol with push buttonsfrom a distance of a few to
doxens metres.
| 型号规格 Model |
单位Uite |
2JP-7.5
3JP-7.5 |
2JP-15
3JP-15 |
2JP-30 3JP-30 |
2JP-55
3JP-55 |
2JP-75
|
2JP-90 |
2JP-110 |
2JPP-17 |
2JPP-30 |
| 工作卷筒平均拉力
Average Puling Forceof Working Drum |
KN |
8 |
14 |
28 |
50 |
54 |
63 |
80 |
15 |
28 |
| 工作钢绳平均速度
Average Speed of Working Rope |
m/s |
1 |
1.1 |
1.2 |
1.2 |
1.3 |
1.3 |
1.3 |
1.1 |
1.2 |
| 工作钢绳直径
Dameter of Working Rope |
mm |
9.3 |
12.5 |
15.5 |
18.5 |
20 |
23 |
24.5 |
14 |
17 |
| 工作卷筒容绳量
Rope Capacity if Working Drum |
m |
45 |
80 |
90 |
100 |
180 |
125 |
110 |
80 |
85 |
| 电动机功率
Revolutio power |
kw |
7.5 |
15 |
30 |
55 |
75 |
90 |
110 |
17 |
30 |
| 电动机转速
Revolutio Speed |
m/s |
1440 |
1460 |
1470 |
1480 |
1480 |
1480 |
1480 |
1450 |
1450 |
| 外形尺寸Overall Dim. |
长Length |
mm |
1210 1445 |
1525
1900 |
1685
2040 |
2070
2510 |
2350 |
2400 |
2600 |
|
|
| 宽Widht |
mm |
565 |
660 |
380 |
1010 |
1515 |
1515 |
1515 |
|
|
| 高Height |
mm |
490 |
620 |
735 |
890 |
1300 |
1300 |
1300 |
|
|
| 总重量 (不包括耙斗和滑轮)
Total weight |
kg |
390
505 |
665 860 |
1155
1500 |
2125
2745 |
3620 |
3730 |
4120 |
90 |
1500 |
|
