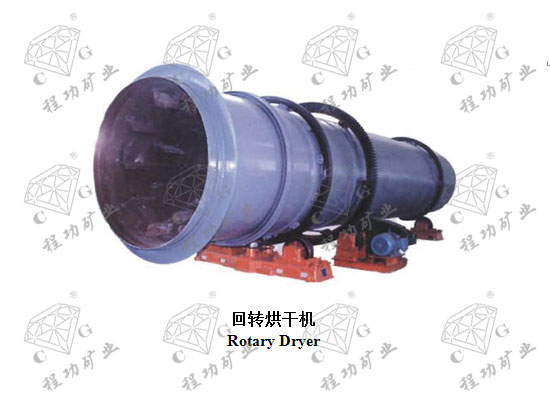

回转烘干机 Rotary
Dryer
回转烘干机广泛运用于建材、冶金化工、水泥工业烘干矿渣石灰石、煤粉、矿渣、粘土等物料。该机主要由回转体、扬料板、传动装置、支撑装置及密封圈等部件组成。
Rotary dryers are widely used in building material, metallurgical
chemical, and cement industries to dry materials such as limestone, coal
powder, slag, and clay. They are mainly composed of revolving bodies, raising
material board, transmission device, supporting device, seal ring, etc.
技术参数
| 规格 |
筒体 |
生产能力 |
流向 |
电动机功率 |
重量 |
| 内径 |
长度 |
倾角 |
转速 |
| mm |
mm |
(0) |
r/min |
t/h |
|
kw |
t |
| ф1.5×14 |
1500 |
14000 |
2.5 |
4.28 |
3-4 |
顺流 |
15 |
21.0 |
| ф1.8×15 |
1800 |
15000 |
2.5 |
5 |
5-7 |
18.5 |
27.0 |
| ф1.5×18 |
1800 |
18000 |
2.5 |
5 |
5-7 |
18.5 |
30.0 |
| ф1.5×20 |
1800 |
20000 |
2.5 |
5 |
5-8 |
18.5 |
31.0 |
| ф2.0×20 |
2000 |
20000 |
2.5 |
3.38 |
7-10 |
22 |
43.0 |
| ф2.2×22 |
2200 |
22000 |
2.5 |
2.8 |
8-14 |
30 |
50.0 |
| ф2.2×24 |
2200 |
24000 |
2.5 |
2.8 |
8-14 |
37 |
52.0 |
| ф2.4×24 |
2400 |
24000 |
2.5 |
2.82 |
12-16 |
45 |
70.0 |
| ф2.6×26 |
2600 |
26000 |
2.5 |
2.58 |
14-18 |
55 |
84.0 |
| ф2.8×28 |
2800 |
28000 |
2.0 |
2.55 |
18-20 |
75 |
100.0 |
| ф3.0×28 |
3000 |
28000 |
2.8 |
2.69 |
20-22 |
100 |
130.0 |
| |
