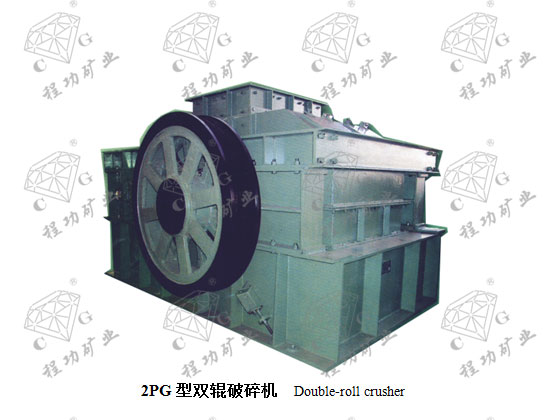

2PG型双辊破碎机 Double-roll crusher
本机主要用于粗碎、中碎各级硬度的煤、焦炭及其它低硬度的脆性物料。
The two types of the machines
are designed to be used for the coarse and medium reduction of various kinds of
coal and coke as well as other brittle materials of low hardness.
本机由机架、机身、辊轮等部件组成。电动机通过三角皮带传动主轴轮使辊轮按照已调整好的轨迹进行运转，将破碎腔机物料予破碎。
Such machine consists of the
frame, the body, rollers, etc. The motor drives the main axis wheel through the
triangle belt to get the rollers to operate along the already adjusted track so
that the materials in the crusher can be crushed.
| 型号规格 Model |
辊子尺寸
Rotor size |
进料粒度
Inlet size |
出料粒度
Output size |
产量Capacity |
功率Power |
质量Weight |
| mm |
mm |
mm |
t/h |
kw |
t |
| 2PG400×250 |
Φ400×250 |
32 |
≤8 |
10 |
≤15 |
≤1.4 |
| 2PG600×400 |
Φ600×400 |
39 |
≤4 |
≤32 |
≤37 |
≤3.6 |
| 2PG610×750 |
Φ610×750 |
45 |
≤3 |
≤30 |
≤55 |
≤7.3 |
| 2PG750×500 |
Φ750×500 |
50 |
≤5 |
≤49 |
≤45 |
≤7.65 |
| 2PG900×900 |
Φ900×900 |
40 |
≤10 |
≤45 |
≤75 |
≤18.4 |
| 2PG1000×800 |
Φ1000×800 |
40 |
≤10 |
≤70 |
≤90 |
≤25.2 |
| 2PG1200×800 |
Φ1200×800 |
30 |
≤8 |
≤75 |
≤90 |
≤25.9 |
| 2PG1200×1000 |
Φ1200×1000 |
40 |
≤12 |
≤150 |
≤110 |
≤51 |
|
