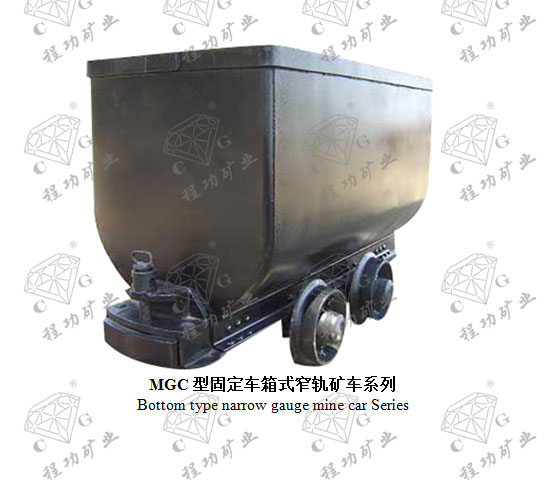

MGC、YGC型固定车箱式窄轨矿车 Bottom
type narrow gauge mine car
国家行业标准JB/T9027
本矿车适用于煤矿、金属矿山、地下巷道及地表工业场地运输矿石、废石等其他物料。可挂成列用机车牵引、卸料用翻车机进行。
Such mine cars are used in coal mines, metal mines, underworkings
and operation site to transport ores, barren rock, and other materials. They
can be hung in rows and dragged by locomotives. Materials are unloaded through
car dumpers.
| 型号规格Model |
容积Volume |
装载量Loading weight |
轨距Track base |
牵引高度Dragging hight |
牵引力Dragging force |
外形尺寸
Overrall dimensions |
质量Weigh t |
| m3 |
t |
mm |
mm |
KN |
m |
t |
| MGC0.5-6 |
0.5 |
1 |
600 |
320 |
60 |
1.3×0.8×1 |
0.34 |
| MGC0.7-6 |
0.7 |
1.75 |
600 |
320 |
60 |
1.5×0.9×1.1 |
0.5 |
| MGC1.1-6 |
1.1 |
1.8 |
600 |
320 |
60 |
2×0.9×1.2 |
0.58 |
| MGC1.2-6 |
1.2 |
3 |
600 |
320 |
60 |
1.9×1.1×1.2 |
0.75 |
| MGC1.2-7 |
1.2 |
3 |
762 |
320 |
60 |
1.9×1.1×1.2 |
0.8 |
| MGC1.7-6 |
1.7 |
2.7 |
600 |
320 |
60 |
2.4×1×1.2 |
0.8 |
| MGC1.7-9 |
1.7 |
2.7 |
900 |
320 |
60 |
2.4×1×1.2 |
0.9 |
| MGC2-6 |
2 |
5 |
600 |
320 |
60 |
3×1.2×1.2 |
1.33 |
| MGC2-7 |
2 |
5 |
762 |
320 |
60 |
3×1.2×1.2 |
1.35 |
| MGC3.3-9 |
3.3 |
5.5 |
900 |
320 |
60 |
3.5×1.4×1.3 |
1.56 |
| YGC0.5-6 |
0.5 |
1.25 |
600 |
320 |
60 |
2×0.9×1.2 |
0.61 |
| YGC0.7-6 |
0.7 |
1.75 |
600 |
320 |
60 |
1.5×0.9×1.1 |
0.65 |
| YGC1.2-6 |
1.2 |
3 |
600 |
320 |
60 |
1.9×1.1×1.2 |
0.72 |
| YGC2-6 |
3 |
5 |
600 |
320 |
60 |
3×1.2×1.3 |
1.3 |
| YGC4-7 |
4 |
10 |
762 |
320 |
60 |
3.7×1.3×1.6 |
1.62 |
| YGC4-9 |
4 |
10 |
900 |
320 |
60 |
3.7×1.3×1.6 |
1.7 |
| YGC10-7 |
10 |
25 |
762 |
430 |
79 |
7.2×1.5×1.6 |
7 |
| YGC10-9 |
10 |
25 |
900 |
430 |
79 |
7.2×1.5×1.6 |
7.1 |
| |
