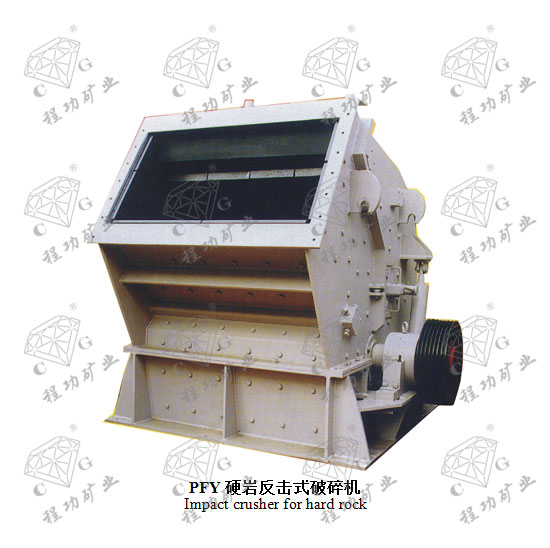

PFY硬岩反击式破碎机 Impact crusher for hard rock
国家行业标准JB/T10246
PFY系列反破碎机是我厂在吸收国内外先进技术，结合国内砂石行业具体工矿条件而制的最新一代反击破碎机，该设备具有破碎比大、矿碎后物料呈立方体颗粒、耐磨件使用寿命长等优点，推广使用后为用户取得了明显的经济效益。
PFY impact crushers for hard rock are the newest generation of
impact crushers developed by our factory by absorbing advanced technology at
home and abroad and according to actual working conditions in domestic sand
industry. Such equipment enjoy advantages such as big crushing ratio, the shape
of cubic particles of materials after crushing, and long service life of
wear-resistant parts. Users of it gain considerable economic benefits.
物料进入机体后碰上高速旋转的锤头迎关打击，大块物料立即被打碎，碎料高速飞向支击板，进行第二次碰撞破碎，反弹物料与后续来的物料相互撞击破碎达到最终破碎目的。
After the materials enter the machine, they bump against the
rapidly rotating hammer. As a result, bulk materials are broken into pieces
immediately. Then the broken materials fly to the striking plate for the second
collision and crushing. The rebounded materials collide with the later-coming
materials to realize utter crushing.
| 型号规格 |
转子尺寸
Rotor size |
给料尺寸
Feeding size |
产量 Capacity |
出料粒度
Output size |
功率 Power |
质量 Weight |
| Model |
mm |
mm |
t/h |
mm |
kw |
t |
| PFY0504 |
Φ500×400 |
30-100 |
4-10 |
≤25占85% |
22-37 |
≤2 |
| PFY0607 |
Φ640×740 |
30-100 |
10-20 |
≤25占85% |
22-37 |
≤4.4 |
| PFY0705 |
Φ750×500 |
35-120 |
10-25 |
≤25占85% |
22-37 |
≤4.4 |
| PFY0807 |
Φ850×700 |
40-150 |
15-30 |
≤25占85% |
30-55 |
≤8.9 |
| PFY1007 |
Φ1000×700 |
50-200 |
25-60 |
≤25占85% |
37-90 |
≤10.5 |
| PFY1010 |
Φ1000×1000 |
60-250 |
30-100 |
≤25占85% |
55-110 |
≤13.9 |
| PFY1013 |
Φ1000×1300 |
80-250 |
50-120 |
≤25占85% |
110-185 |
≤14.5 |
| PFY1210 |
Φ1250×1050 |
100-300 |
60-140 |
≤25占85% |
110-185 |
≤16 |
| PFY1212 |
Φ1250×1250 |
100-300 |
80-160 |
≤25占85% |
132-185 |
≤21 |
| PFY1214 |
Φ1250×1400 |
120-300 |
80-180 |
≤25占85% |
132-200 |
≤21.5 |
| PFY1310 |
Φ1280×1050 |
120-300 |
70-150 |
≤25占85% |
132-200 |
≤19 |
| PFY1315 |
Φ1300×1500 |
150-300 |
100-250 |
≤25占85% |
180-315 |
≤23 |
| PFY1320 |
Φ1300×2000 |
150-350 |
200-350 |
≤25占85% |
300-400 |
≤26 |
| PFY1415 |
Φ1400×1500 |
200-400 |
250-400 |
≤25占85% |
300-400 |
≤26 |
| PFY1622 |
Φ1600×2200 |
200-400 |
400-600 |
≤25占85% |
450-560 |
≤101 |
| PFY1822 |
Φ1800×2200 |
250-500 |
500-800 |
≤25占85% |
560-710 |
≤118 |
|
