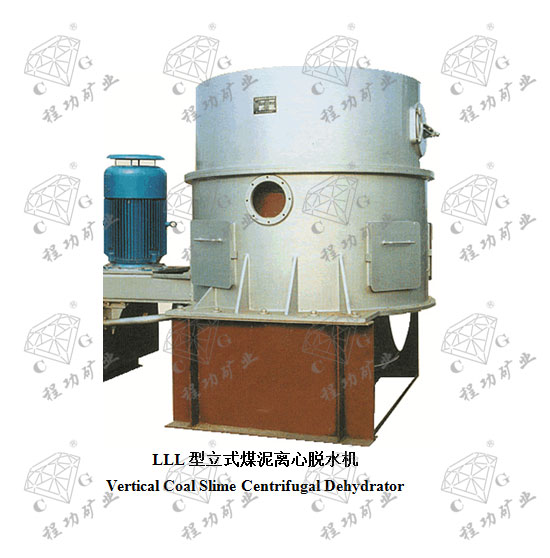

LLL型立式煤泥离心脱水机 Vertical
Coal Slime Centrifugal Dehydrator
用途：在选煤厂主要用于回收煤泥水中料度》0.15mm的粗煤泥。
Application: This type of centrifugal dehydrator is mainly used to recycle
coarse coal slime with particle side of not smaller than 0.15mm in the coal slime water.
技术特点：处理能力为20-50t/h，产品外在水分为14%-16%。随煤质的不同，入料度组度成不同，离心机的处理能力有很大的不同。
Technical Characteristics: Handling capacity: 20-50t/h; surface moisture
of products: 14%-16%. With the difference in coal quality, the particle size
group is different and the handling capacity of centrifugal dehydrators is
greatly different.
| 型号规格 |
|
LLL930 |
LLLL1030 |
LLL1200 |
| 回收粒度 |
mm |
>0.15 |
>0.15 |
>0.15 |
| 入料浓度 |
% |
<40(>60) |
<40(>60) |
<40(>60) |
| 处理能力 |
t/h |
20-30 |
25-35 |
30-35 |
| 产品外在水分 |
% |
12-16 |
12-16 |
12-16 |
| 筛篮大端直径 |
mm |
930 |
1030 |
1180 |
| 筛篮转速 |
r/min |
600 |
520 |
534 |
| 筛篮半锥角 |
(0) |
30 |
30 |
30 |
| 筛网缝隙 |
mm |
0.25、0.35、0.5 |
0.25、0.35、0.5 |
0.25、0.35、0.5 |
| 主电机功率 |
kw |
37 |
45 |
75 |
| 润滑电机功率 |
kw |
0.75 |
1.1 |
1.1 |
| 外型尺寸 |
mm |
2780×2080×2450 |
3010×2250×2515 |
3243×2420×2705 |
| 质量 |
t |
4.65 |
6.47 |
7.97 |
|
