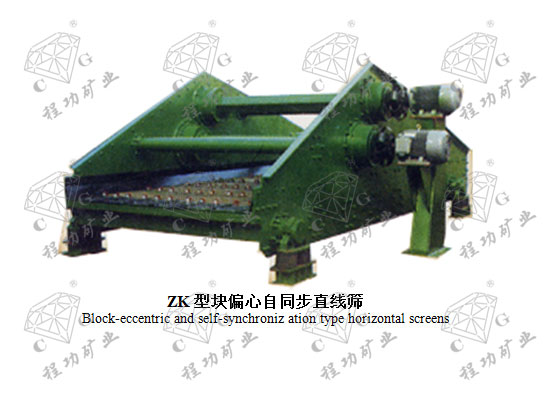

ZK型块偏心自同步直线筛
Block-eccentric
and self-synchroniz ation type horizontal screens
系列筛机为直线运动，引进西德KHD公司技术制造。可用于选煤、选矿，对煤和矿石，非金属物料进行脱水、脱介和脱泥，广泛用于矿山、发电、制糖、制盐，对中细粒度物料进行干湿式分级。
Linear movement,made according
to the technology intrduced from KHD company.Suitable tor dewatering,medium
drainaging and spraying in coal preparation and ore dressing,widely used for
medium and fine material wet and dry classifying in mine,power,sugar making and
salt making industries.
ZK型直线筛适用于原矿筛分、分级、脱泥、洗矿及脱水作业，尤其可作炭浆厂除屑、安全检查、载金炭分离等。该机具有低能耗（安装功率一般为自定中心筛的1/5）、结构简单、没有传动部件、维修工作量少，工作可靠，振幅可调等特点。
| 型号规格Model |
筛面尺寸 |
工作面积 |
层数 |
筛孔尺寸 |
筛面倾角 |
振幅 |
频率 |
给粒粒度 |
处理能力 |
电机功率 |
质量 |
Size
m |
Area
m2 |
No.of Decks |
Hole Size
mm |
Dip
(°) |
Amp -litude
mm |
FreQu -ency
HZ |
Feed Size
mm |
Capa -city
t/h |
Power
kw |
Weigh
kg |
| ZK1022 |
1×2.25 |
2.25 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤150 |
5-29 |
2×3.0 |
1850 |
| 2ZK1022 |
1×2.25 |
2.25 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤250 |
12-90 |
2×5.5 |
2595 |
| ZK1222 |
1.2×2.25 |
2.70 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤150 |
5-41 |
2×4.0 |
2485 |
| 2ZK1222 |
1.2×2.25 |
2.70 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤250 |
15-108 |
2×7.5 |
3415 |
| ZK1230 |
1.2×3.0 |
3.60 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤150 |
7-54 |
2×5.5 |
2760 |
| 2ZK1230 |
1.2×3.0 |
3.60 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤250 |
20-144 |
2×7.5 |
3905 |
| ZK1237 |
1.2×3.75 |
4.50 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤150 |
9-68 |
2×5.5 |
2930 |
| 2ZK1237 |
1.2×3.75 |
4.50 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤250 |
25-180 |
2×7.5 |
4320 |
| ZK1430 |
1.4×3.0 |
4.20 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤150 |
8-63 |
2×5.5 |
3040 |
| 2ZK1430 |
1.4×3.0 |
4.20 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤250 |
23-168 |
2×11 |
4225 |
| ZK1437 |
1.4×3.75 |
5.25 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤150 |
11-79 |
2×5.5 |
3215 |
| 2ZK1437 |
1.4×3.75 |
5.25 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤250 |
29-210 |
2×11 |
5245 |
| ZK1445 |
1.4×4.5 |
6.30 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤150 |
13-95 |
2×7.5 |
3850 |
| 2ZK1445 |
1.4×4.5 |
6.30 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16.00-16.33 |
≤250 |
35-352 |
2×15 |
5770 |
| ZK1637 |
1.6×3.75 |
6.00 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
12-90 |
2×7.5 |
3560 |
| 2ZK1637 |
1.6×3.75 |
6.00 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
33-240 |
2×15 |
5835 |
| ZK1645 |
1.6×4.5 |
7.20 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
14-108 |
2×7.5 |
3850 |
| 2ZK1645 |
1.6×4.5 |
7.20 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
40-288 |
2×15 |
6505 |
| ZK1652 |
1.6×5.25 |
8.40 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
17-126 |
2×7.5 |
4090 |
| 2ZK1652 |
1.6×5.25 |
8.40 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
46-332 |
2×15 |
6950 |
| ZK1845 |
1.8×4.5 |
8.10 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
16-122 |
2×11 |
4995 |
| 2ZK1845 |
1.8×4.5 |
8.10 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
45-324 |
2×15 |
7095 |
| ZK1852 |
1.8×5.25 |
9.45 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
19-142 |
2×11 |
5340 |
| 2ZK1852 |
1.8×5.25 |
9.45 |
2 |
3-50 0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
52-378 |
2×15 |
7740 |
| ZK1860 |
1.8×6.0 |
10.8 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
22-162 |
2×11 |
5650 |
| 2ZK1860 |
1.8×6.0 |
10.8 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
54-432 |
2×15 |
8210 |
| ZK2037 |
2×3.75 |
7.5 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
15-113 |
2×11 |
4855 |
| 2ZK2037 |
2×3.75 |
7.5 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
42-300 |
2×15 |
7210 |
| ZK2045 |
2×4.5 |
9 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
18-195 |
2×11 |
5205 |
| 2ZK2045 |
2×4.5 |
9 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
50-360 |
2×15 |
7930 |
| ZK2052 |
2×5.25 |
10.5 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
21-158 |
2×11 |
5915 |
| 2ZK2052 |
2×5.25 |
10.5 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
58-420 |
2×18.5 |
8780 |
| ZK2045 |
2×4.5 |
9 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
18-195 |
2×11 |
5205 |
| 2ZK2045 |
2×4.5 |
9 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
50-360 |
2×15 |
7930 |
| ZK2052 |
2×5.25 |
10.5 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
21-158 |
2×11 |
5915 |
| 2ZK2052 |
2×5.25 |
10.5 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
58-420 |
2×18.5 |
8780 |
| ZK2060 |
2×6.0 |
12 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
24-180 |
2×15 |
6285 |
| 2ZK2060 |
2×6.0 |
12 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
66-480 |
2×18.5 |
9365 |
| ZK2437 |
2.4×3.75 |
9 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
18-135 |
2×15 |
5635 |
| 2ZK2437 |
2.4×3.75 |
9 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
50-360 |
2×18.5 |
8350 |
| ZK2445 |
2.4×4.5 |
10.8 |
1 |
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤150 |
22-162 |
2×15 |
6352 |
| 2ZK2445 |
2.4×4.5 |
10.8 |
2 |
3-50
0.25-13 |
±5 |
3.5-5.0 |
16-16.33 |
≤250 |
60-432 |
2×22 |
9300 |
| |
